Multi-Panels

Fire-rated & environmentally friendly construction panels
Multi-Panels, Inc. is your source for fire-resistant & structural building panels for a variety of applications.  With deep roots in the design culture of Scandinavia, innovation and quality are our top priority.
1/3

Our Products

NOCOM Subfloor & Roof Deck

NOCOM STRUCTURAL SUBFLOOR & ROOF DECK

Key testing scope:
  • Fire-Resistance: 1 & 2-hour UL Listed assemblies available over variety of framing options
  • Strength: ¾” thick supports 491+ lbs/sf uniform loading at 16” OC at L/360. Can span up to 24″ OC
  • Non-combustible: Certified noncombustible to ASTM E136 per QAI
  • Weather Resistant: Factory coated with weather sealer for exposure to elements in open jobsite conditions
  • Laminated:  for extra strength
Technical Specifications and Packing
  • Size 4’ x 8’ x 3/4” T&G – One Face Sealed – White/Grey – Packing 30 pcs per pallet
  • Size 4’ x 8’ x ½” Square edge – One Face Sealed – White- Packing 45 pcs per pallet

M4 Underlayment Application for Floors

Meet fire and sound requirements quicker and more cost effectively

Key Features & Benefits:
  • Fire-Resistance: 1-hour UL Listed assemblies available over wood trusses
  • Sound Insulation:STC & IIC Ratings of 55+ with a variety of popular floor finishes
  • Quick & Easy Installation:1/2″ x 4′ x 8′ panels install quickly over existing subfloor with standard carpentry tools
  • Weather Resistant: Factory coated with weather sealer for exposure to elements in open jobsite conditions
  • Avoid the Wet Trades:  Save the time and hassle of poured toppings.  Once installed, ready for foot traffic & walls.
  • Contains No Chloride:  Non-Chloride based formula avoids any risk of corrosion due to leaching chloride
  • Contains No Silica:  M4 is a safer choice containing no crystalline silica
M4 Underlayment Application for Floors

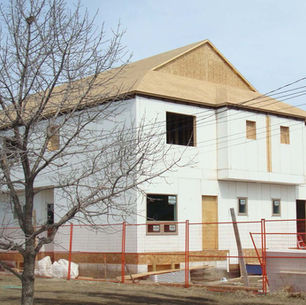

Wall Sheathing

M4-EXTERIOR SHEATHING – ICC ES REPORT ESR 3840

Material

The M4-Exterior Sheathing is Fiber reinforced, produced with composite materials of pure Magnesium Sulphate, expanded Perlite, other agents and strong alkali free glass fiber mesh. It is 100% Silica free. The board appears in its natural off white color as standard and has a hard and durable surface.

Technical Specifications and Packing
  • Size  4’ x 8’ x 1/2” packing 45 pcs per pallet
  • Size  4’ x 9’ x 1/2” packing 40 pcs per pallet
  • Size  4’ x 10’ x 1/2” packing 36 pcs per pallet
  • Other dimensions per request – Sealed or Unsealed

M4 FRB Panel

The M4 Fire Restrictive Barrier 1/8 in. (M4 FRB)

The M4 FRB is an innovative Underlayment panel which is ASTM proven as a Water Restrictive Barrier and can boost most structural wood framed exterior wall assemblies to a 1-hour fire-rating.

How to use

Simply install a single layer of the M4 FRB boards to the exterior facing of any 7/16 in. sheathing of DOC PS1 or DOC PS2 third party approved OSB or Plywood. The M4 FRB is installed Offset to the 7/16 in. sheathing joints

Technical Specifications and Packing
  • Size 4’ x 8’ x 1/8” Exterior face Sealed – packing 180 pcs per pallet

SIPS

M4 Sheathing as Thermal Fire Barrier for SIPs

M4 ½” thickness has been tested to CAN/ULC S124-06, Standard Method for the Evaluation of Protective Coverings for Foamed Plastic and M4 has Classification B.
Classification range A – D, If the temperature rise at the interface of the protective cover and the foamed plastic at the end of 10 min has not exceeded 140°C average or 180°C at any one of the thermocouples specified in the test standard, the protective cover shall be accorded a classification of B.

M4 Racking, Transverse, Axial loads for SIPs

Testing was conducted in accordance with ICC-ES AC04 Acceptance Criteria for Sandwich Panels, reference ASTM E 72. For the sampled ½’’ M4 7.25 foam core.

Technical Specifications and Packing
  • Size  4’ x 8’ x 1/2” packing 45 pcs per pallet
  • Size  4’ x 9’ x 1/2” packing 40 pcs per pallet
  • Size  4’ x 10’ x 1/2” packing 36 pcs per pallet
  • Other dimensions per request – Sealed or Unsealed

[ M4 + ]

M4 is Non-Combustible

[ M4 + ]

M4 Is a ICC and a UL certified product

[ M4 + ]

M4 is a green product and does not contain any silicate or other dangerous raw materials

[ M4 + ]

M4 is like a wood product but does not rot or create mold and has no thermal expansion
